Running RESOLVE#

Now that you have saved the data from Scenario Tool, you will have an updated data folder ready to run new cases with. As a reference, here is the file directory structure with the main folders that you interact with when running a RESOLVE case. The subfolders in the “data” folder include:

Folder name

Description

interim

Includes all system data that gets saved from Scenario Tool via macro. Each folder saved data for a specific component type. The subfolders of “systems” and “linkages” share data regarding the relationship between components.

profiles

Includes hourly profiles. Subfolders include different components of the system that require hourly profiles.

processed

Includes re-scaled profiles from RESOLVE which gets created the first time running a RESOLVE case with all profiles and sample days.

settings

Includes sample days in the “timeseries” subfolder and all case definitions in the “resolve” subfolder. The subfolder of “temporal_settings” is where modeling years and other temporal settings get saved.

Running a RESOLVE case also requires interactions with the subfolders in the “results” folder:

Folder name

Description

Subfolders in “resolve” folder for each case name

Includes results of a case run. If a run is successful, the main results will be saved in the “summary” folder for the case. Results folder for a case will still be created if the run fails but no summary results will be available. The log file may help identify the case failure reason.

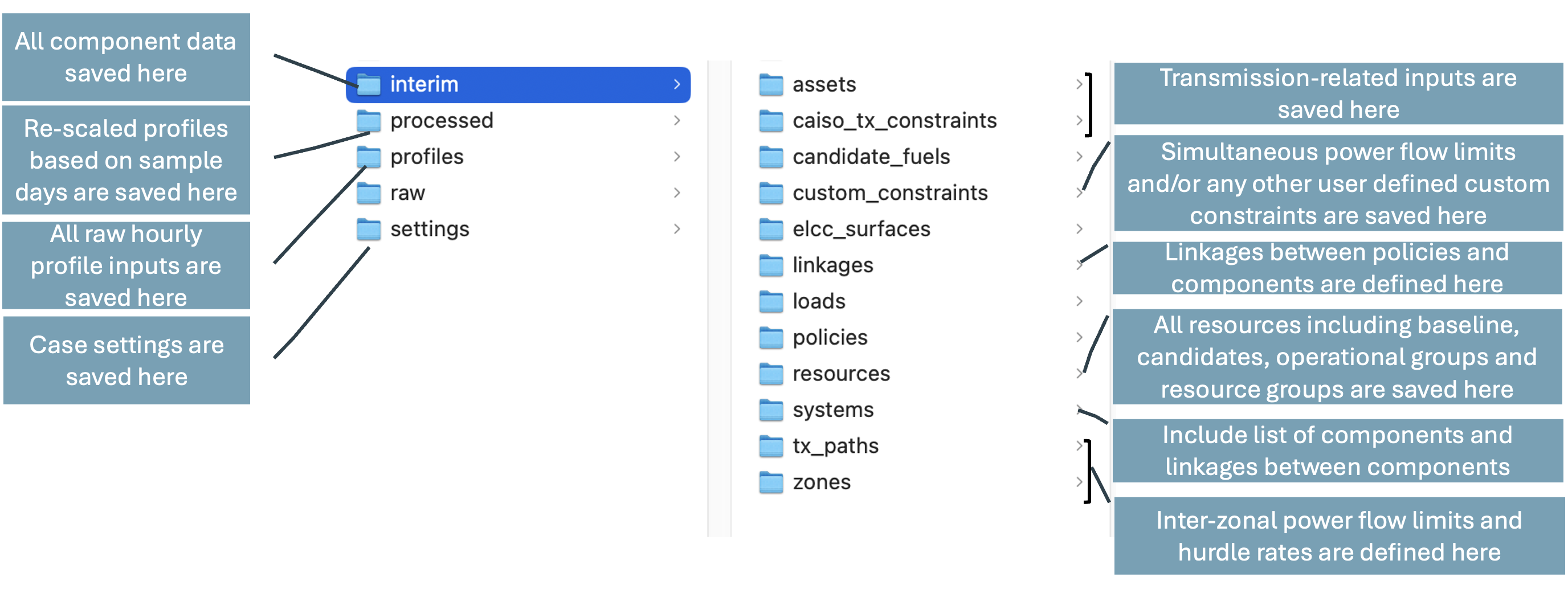

A schematic of the data folders is shown below: RESOLVE Data Folder Structure

Command Line to Start a Case Run#

If you plan to run Resolve via a command line/terminal, use the following instructions. Running Resolve via the command line gives you more options for how the model is run than are exposed in the Scenario Tool, as discussed below.

  1. In a command line (e.g., Command Prompt), navigate into the ./new_modeling_toolkit/resolve directory

  2. Activate resolve-env conda environment: conda activate resolve-env

  3. Use the command python run_opt.py to run a case. The run_opt.py script accepts the following arguments:

  • --data-folder: The name of your data folder (if different than the default .\data)

  • --solver-name: The name of the solver to use (e.g., gurobi, cplex, amplxpress, appsi_highs

  • --symbolic-solver-labels: Enable descriptive variable names in the Pyomo model formulation–helpful for debugging but not recommended to use as a default.

Tip

If for the installation process, you had used Pycharm or any other platforms, then the recommended best practice is to open a terminal from there and run the same commands.

Examples:#

  • To run all cases listed in ./data/settings/resolve/cases_to_run.csv using gurobi as the solver:

python run_opt.py --data-folder data --solver-name gurobi

  • To run a single defined case called Core_25MMT, type the name of the case into the command line:

python run_opt.py Core_25MMT --data-folder data --solver-name gurobi

  • To run all cases from a different data folder called data-new (listed in ./data-new/settings/resolve/cases_to_run.csv) using cplex solver:

python run_opt.py Core_25MMT --data-folder data --solver-name cplex

Note

If you’re in your command line and unsure what arguments to pass to run_opt.py, use the command python run_opt.py --help to get help!
